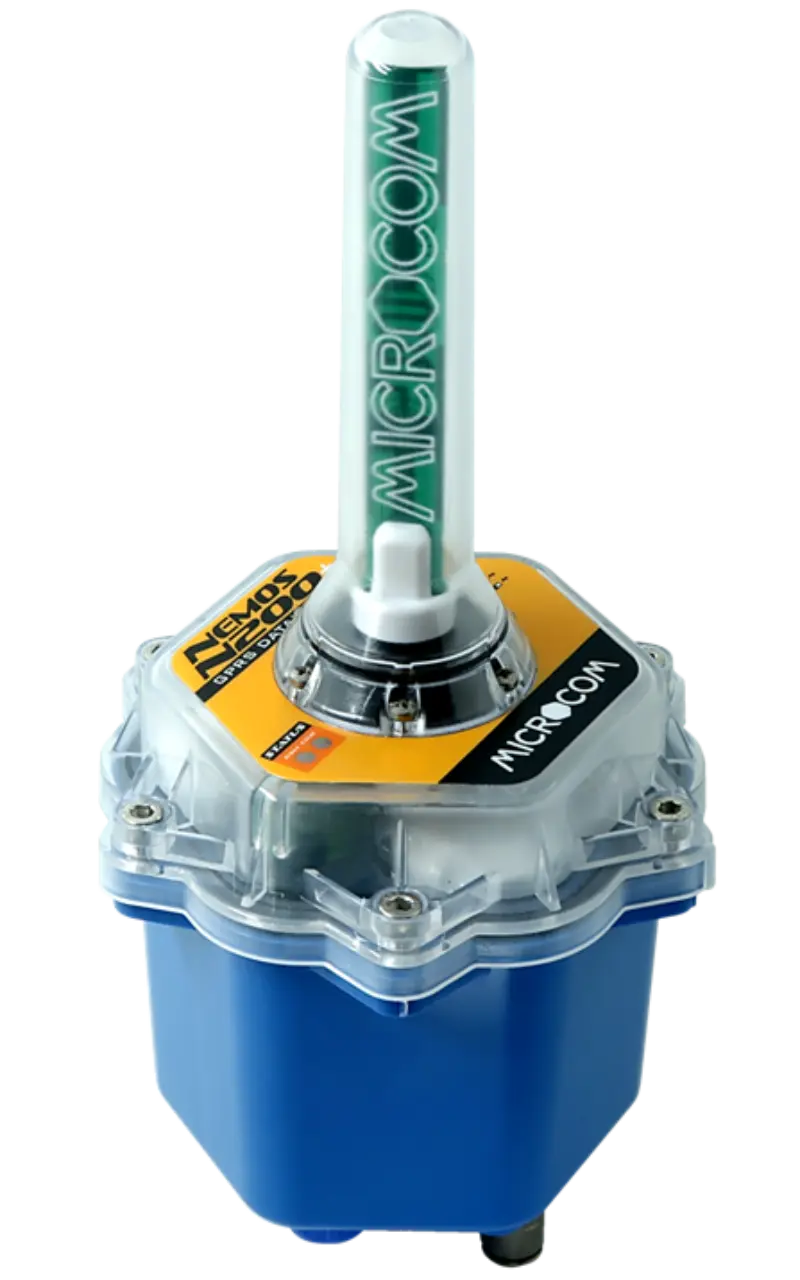

Nemos 200+
IP68 GSM Datalogger
The NEMOS N200+ is a GSM-enabled, battery-powered data acquisition device designed for operation in manholes and flood-prone environments. In its basic configuration, it features four digital inputs suitable for flow meters and two analog inputs. Optionally, it can be equipped with a MODBUS RTU interface and one or two integrated pressure sensors with water hammer detection capabilities.
The Nemos N200+ incorporates the latest narrowband communication technologies, NB-IoT and CAT.M1, while maintaining the 2G standard. This allows the device to communicate with the most prevalent networks currently available (2G) and prepares it for the future development of NB-IoT/CAT.M1.
The Nemos N200+’s unique detachable antenna design offers the best features of an integrated antenna solutionārobust mechanical strength and IP68 protectionāwith the flexibility to remove the enclosure and install an external antenna where needed. The Bluetooth radio provides convenient local communication and diagnostics, allowing these tasks to be performed remotely from outside the enclosure or inspection chamber.
CaracterĆsticas
GENERAL INFORMATION
Detachable antenna
The innovative detachable antenna concept of the Nemos N200+ offers two configurations:
Integrated antenna: The datalogger and antenna form a solid, watertight unit. The half-wave dipole design offers excellent performance, exceeding 90%. External antenna: The detachable antenna housing provides access to a stainless steel SMA connector, thus allowing the installation of an external antenna.
The IP68 certificate of the Nemos N200+ has been validated for both configurations
Batteries and autonomy
The NEMOS N200+ is supplied with two battery capacities: one pack of 7.2V and 14AH or two packs for a total of 7.2V and 28AH. This is, respectively, double and quadruple the industry standard.
| Channels | Sampling freq. | Transmission freq. | Capacity | Battery estimate* |
|---|---|---|---|---|
| Flow rate & pressure | 5 minutes | 24 hours | Single pack | 10 years |
| Flow rate & pressure | 5 minutes | 1 hour | Double pack | 4 years |
| Flow rate & pressure (Transient detection mode) | 5 minutes | 24 hours | Single pack | 5 years |

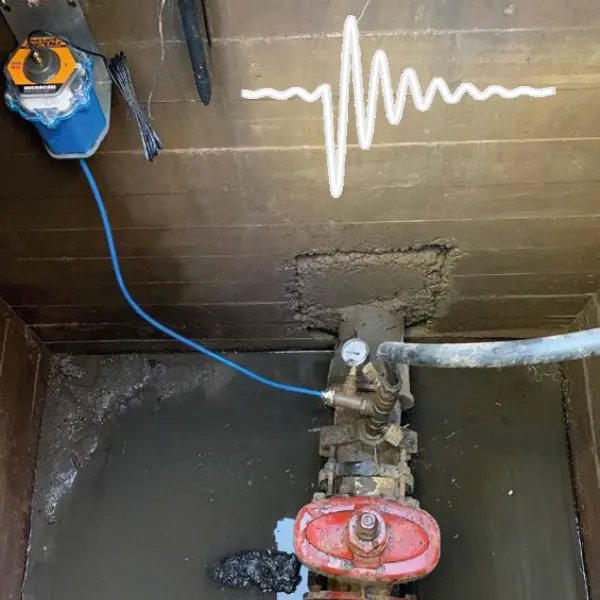

Pressure
The NEMOS N200+ is the most advanced datalogger in its sector for pressure monitoring. This is due to its highly energy-efficient implementation, which enables continuous pressure measurement despite the limitations imposed by battery power.
Pressure monitoring is configurable in two modes:
Low power mode: Pressure is read every second. This generates maximum, minimum, and average statistics for each recording period. The impact on battery life is negligible.
Transient detection mode: Pressure is read between 8 and 128 times per second depending on the configuration and detected pressure gradient, recording pressure transients and water hammer. The high sampling rate of 128 Hz allows for high-fidelity capture of peak pressures.
TECHNICAL SPECIFICATIONS
| GENERAL | |
|---|---|
| Battery capacity | Single pack 7.2 V / 14 Ah (default) Double pack 7,2 V / 28 Ah (optional) |
| IP rating | IP68 2 m. 100 days |
| Radio modem chipset | GSM / 2G / NB-IoT GSM/2G/3G (optional) |
| Internal Memory | >150.000 registers |
| Antenna | 1/2 lambda dipole (removable) |
| Real-time clock | High accuracy + -2ppm automatic synchronization via NTP. |
| Configuration and diagnostics | Bluetooth 4.0 |
| External materials | Polycarbonate |
| ANALOG INPUTS | |
|---|---|
| Number | 2 |
| Type | 0-10 VCC Ć³ 4/20 mA |
| Precision | 0.1 % |
| Resolution | 16 bits |
| Impedance | Voltage mode: 2 MOhm CUrrent loop mode: 125 Ohm |
| DIGITALES INPUTS | |
|---|---|
| Number | 4 |
| Sampling frequency | 64 Hz / 256 Hz |
| VOLTAGE POWER OUTPUTS | |
|---|---|
| Number | 2 |
| Type | 5 to 24 VDC |
| Maximum output current | 40mA |
| Precision | 5% |
| PRESSURE SENSORS (OPTIONAL) | |
|---|---|
| Number | 1 or 2 |
| Type | 0-10 Bar / 0-20 Bar |
| Sampling frequency | Low power mode: 1 Hz Transient detection: 8-128 Hz |
| Precision | 0,4 % FOE |
| Hose connection | ā 8 mm. Pneumatic fitting |
| COMMUNICATION BUS EXTERNAL POWER SUPPLY (OPTIONAL) | |
|---|---|
| BUS type | MODBUS RTU / RS-485 |
| Input voltage range | 9 to 30 VDC (1 Ampere maximum) |
IMPROVEMENTS OVER PREVIOUS VERSION
New box design to accommodate the IP68 enclosure of the detachable antenna.
Modem with 2G/NB-IoT/Cat.M1 technology
Bayonet type hose connectors.
ACCESSORIES
F100-N PROBE
Intelligent capacitive probe for reliable detection of spills in overflows
THOR 2 /THOR 7
Two/seven valve latch pilot module. 12 VDC / 2-wire
EXCALIBUR M1
High-performance IP68 GSM antenna. Designed for operation in manholes and confined spaces.
VEGAPULS C11 / C21 / C22
Radar sensor for measuring the level of liquids and bulk solids
Y200-LP
Low power ultrasonic sensor for non-contact water level measurement.

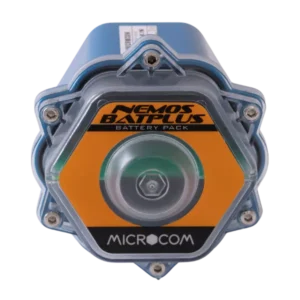

NEMOS BATPLUS
IP68 battery pack compatible with Nemos N200+ 14.4 VDC / 13 Ah
USE CASES

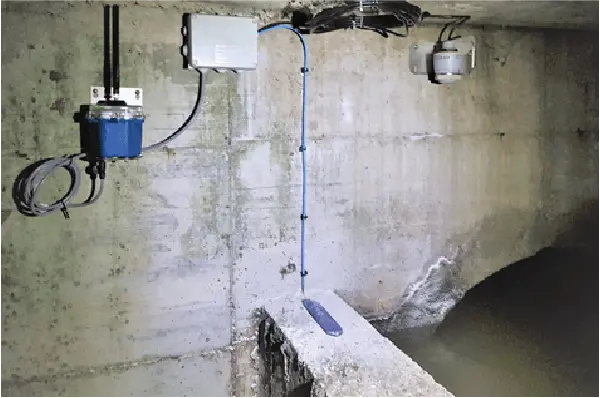

RELIEF MONITORING
Detection and quantification of overflows in spillways and storm tanks without electrical supply. RD 1920/2012 and subsequent revisions

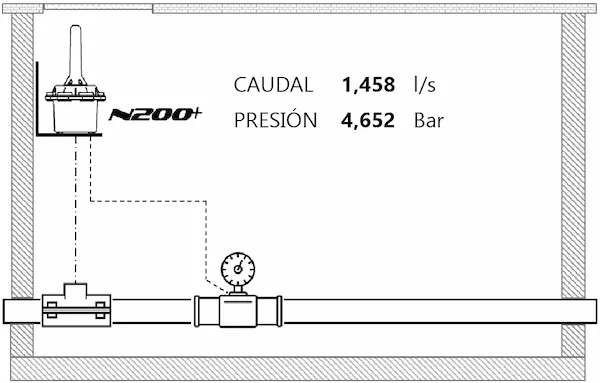

WATER NETWORK SECTORIZATION
Complete supervision of drinking water supply networks.

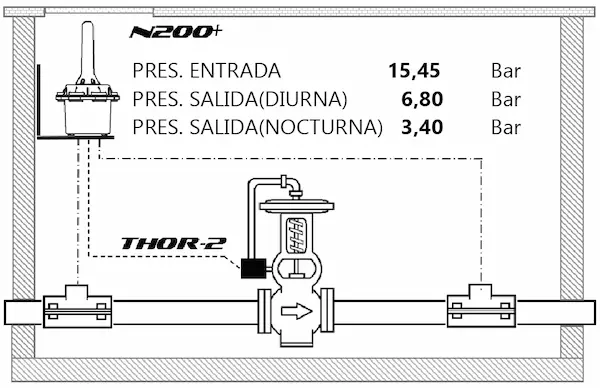

PRESSURE REGULATING VALVES
Level recording at the inlet/outlet and automatic control of outlet pressure.

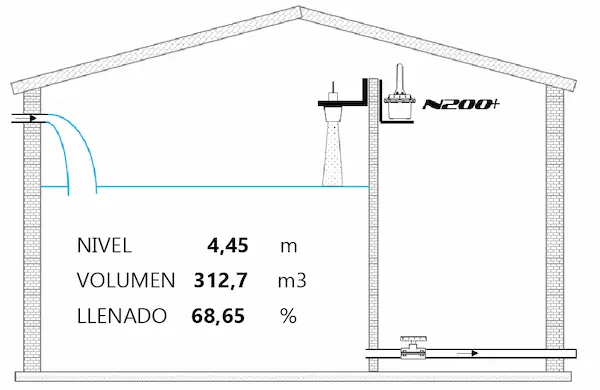

LEVEL MONITORING
In reservoirs and wells without electric power supply.

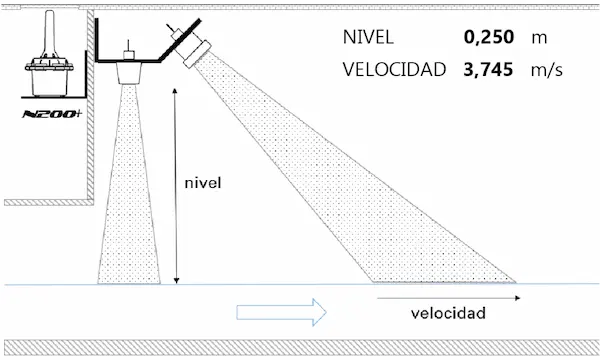

LEVEL AND FLOW MEASUREMENT IN RIVERS AND OPEN CHANNELS
Non-contact measurement of water level and speed.
Ease of use and the use of the latest web technologies to offer an intuitive interface that is as secure as any online banking service are the most outstanding features of ZEUS, the online SCADA that Microcom makes available to its clients free of charge.
A simple web browser is all you need to access the service and start managing your facilities from anywhere. When you are out of the office, the ZEUSmobile mobile application available for iOS and Android facilitates, in addition to optimized access for phones and tablets, the reception of alarms using PUSH technology, making SMS obsolete in most cases.
ZEUS is not limited to visualization, it also allows the reconfiguration of remote stations without having to travel, the sending of orders or the management of users and stations. Integration into other platforms is guaranteed through the most common standards currently such as OPC UA and REST API.
TOOLS AND FEATURES
Complete reporting tool
Maximum security thanks to the most advanced web standards: HTTPs / SSL
Advanced user and privilege management
Easy data integration into other platforms using OPC UA and REST API
Receiving, managing and forwarding alarms
Remote configuration of Hermes and Nemos devices
Availability of the Zeus Synoptic Builder tool for creating synoptics.
